Aiboer is committed to producing high-quality aluminum sheets of various specifications. The hot-selling aluminum sheet alloys include 2000 aluminum sheet, 5000 aluminum sheet, 6000 aluminum sheet, 7000 aluminum sheet, patterned aluminum sheet, and brazed aluminum sheet. Widely used in aerospace, transportation vehicles, shipbuilding, packaging materials, mold manufacturing and other fields.

What is an aluminum plate

Aluminum sheet refers to a rectangular metal sheet processed by hot rolling or cold rolling, with a thickness ranging from 0.2mm to 500mm.

Aluminum plate VS Aluminum sheet

Aluminum sheet: with a thickness below 6mm but above 0.2 mm Aluminum plate: with a thickness above 6mm Aluminum foil: thicknesses less than 0.2 mm

Aluminum sheet production

How to cut aluminum plate

  • High pressure water cutting
  • Slitting equipment cutting
  • Laser cutting
Different thicknesses of aluminum plates require different cutting methods. For aluminum plates with a thickness greater than 6mm, the best cutting method is high-pressure water cutting. If the thickness is less than 6mm, it can be cut by slitting equipment or laser cutting.

Aluminum sheet and plate weight calculation

Aluminum plate length * width * thickness * density = aluminum plate weight

Details Aluminum Sheet Weight Calculator

Aluminum sheet and plate price

Chinese SME aluminum ingot spot price + processing fee = aluminum sheet price

Specifications of aluminum plate

Non heat treatable aluminum sheet and plate

  • 1000: 1060, 1070, 1100
  • 3000: 3003, 3105, 3104, 3004
  • 4000: 4104, 4004, 4047, 4045, 4043
  • 5000: 5052, 5754, 5454, 5182, 5083, 5353, 5086
  • 8000: 8011, 8079, 8006

Temper

O, F, H111, H112, H12, H14, H16, H18, H19, H22, H24, H26, H38, H116, H321

Thickness

0.2mm-200mm

Width

100-2650mm

Length

200-12000mm

Standard

GB/T3880, GJB1541, GJB2662, STMB209, ASME SB-209, EN485, ASTMB928M

Heat treatable aluminum sheets and plates

  • 2000: 2A12, 2011, 2014, 2017, 2024, 2618
  • 6000: 6061, 6082, 6063, 6101, 6060
  • 7000: 7075, 7005, 7050, 7475, 7175

Temper

O, F, H111, H112, T3, T4, T6, 7, T351, T451, T651, T851, T7451, T74, T87

Thickness

0.3mm-200mm

Width

200-38000mm

Length

500-12000mm

Standard

GB/T3880, GJB1541, GB/n167, JB2053, GJB2662, ASTM B209, ASME SB-209, EN 485

Also available in regular sizes

  • 4ft × 8ft,
  • 4' x 8',
  • 4x10 inch

Aluminum plate thickness chart

Thickness

Tolerance

0.5’’ | 1/2’’ | 12.7mm

±0.018"

0.375’’ | 3/8’’ | 9.525mm

±0.016"

0.25’’ | 1/4’’ | 6.35mm

±0.014"

0.188" | 3/16’’ | 4.78 mm

±0.009"

0.125" | 1/8’’ | 3.26mm

±0.007"

0.102" | 2.59mm

±0.006

0.091" | 2.31 mm

±0.0045"

0.081" | 2.06 mm

±0.0045"

0.064" | 1.63 mm

±0.0040"

0.051" | 1.30 mm

±0.0035"

0.040" | 1.02 mm

±0.0035"

0.032" | 0.81 mm

±0.0030"

Classification of aluminum plates

Aluminum sheet and plate alloys

1000 aluminum sheet and plate

  • 1050 aluminum sheet and plate
  • 1060 aluminum sheet and plate
  • 1070 aluminum plate
  • 1100 aluminum sheet and plate

1070 aluminum sheet

2000 aluminum sheet and plate

  • 2014 aluminum sheet and plate
  • 2017 aluminum sheet and plate
  • 2024 aluminum sheet and plate
  • 2A12 aluminum sheet and plate

3000 aluminum sheet and plate

  • 3003 aluminum sheet
  • 3004 aluminum sheet and plate
  • 3104 aluminum sheet plate
  • 3105 aluminum sheet

3105 aluminum sheet

4000 aluminum sheet and plate

5000 aluminum sheet and plate

  • 5052 H32 H34 aluminum sheet
  • 5083 aluminum plate
  • 5754 H22 H111 aluminum sheet plate
  • 5182 aluminum sheet
  • 5454 aluminum sheet
  • 5A06 aluminum plate
  • 5005 alloy aluminum sheet
  • 5086 H111 H321 H116 aluminum plate
  • 5059 aluminum plate

5083 aluminum sheet

6000 aluminum sheet and plate

  • 6061 aluminum plate sheet
  • 6063 alloy aluminum plate sheet
  • 6082 aluminum plate
  • 6101 aluminum sheet plate
  • 6060 aluminum plate
  • 6005 aluminum plate

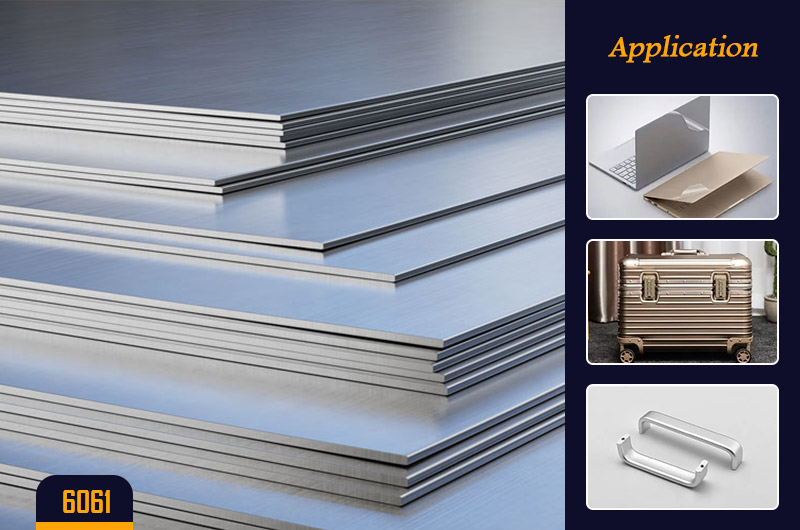

6061 aluminum plate

7000 aluminum sheet and plate

  • 7075 T6 aluminum plate sheet
  • 7050 T7451 aluminum plate
  • 7005 aluminum plate
  • 7475 aluminum plate

7075 aluminum plate

Surface treatment

Color coated aluminum sheet

Aiboer's color-coated aluminum sheet has no oil, no scratches, and no bending on the surface, and the size can be customized according to customer needs.
Coating: PE, PVDF
Color coating method: roller coating, powder coating, electrophoresis
Alloys: 1100, 1050, 3003, 3004, 3005, 3105, 5005, 5182, 5052, 5754, 5454
Status: O, H12, H14, H16
Thickness: 0.18-0.3mm
Width: 50mm-1200mm
Color:
a, one side is gold/white/red/blue/black and other colors, and the other side is protective paint;
b, double-sided varnish/transparent varnish;
c, Design and drawing and printing as required.
Features:
Resistant to cooking, at 121°C for 15 minutes, no color mixing, no fading, no obvious fading;
Stretch resistance, after deep drawing to 40mm, the color will not fall off and the color will not change;
Soak in alcohol at 38-60°C for 40 minutes without fading, falling off or discoloration.
Application: construction (aluminum-plastic panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutter, aluminum gutter), 3C panel, beverage container, etc.

Aluminum diamond plate

Aluminum diamond plate sometimes called aluminum tread plate or aluminum checker plate, It having good forming, drilling, and welding ability, often used as a non-slip aluminum plate on the floor.

Pattern type: 1-5 bar aluminum diamond plate
Thickness: 0.063", 0.08", 0.1", 0.375", 0.5".
Dimensions: 2′ x 8′ (24″ x 96″), 36″ x 144″, 4′ x 10′ (48″ x 120″), 48×144, 48″ x 180″, 48×192, 60× 120, 60×144, 60×192, 60×96, 72×144, 72×192 inches.

Mirror aluminum sheet and plate

Aiboer's mirror aluminum plate has high reflectivity, scratch resistance, corrosion resistance, good strength and formability, and the specifications can be customized.
Alloy: 1050 1060 1070 1085 3003 3105 5052 5005
Status: O, H12, H14, H16
Thickness: 0.18-0.3mm
Width: 50mm-1200mm
Reflectivity: 86%~95%
Applications: Indoor architectural decoration, 3C, kitchen furniture, signage, bags and jewelry boxes, etc.

Application of aluminum sheet and plate

Metal packaging

Aiboer produces aluminum sheet for metal packaging, which is suitable for wine, beverages, cosmetics, pharmaceutical packaging, and can be made into screw caps, easy open caps, anti-theft caps, tanks, etc.

Aluminum closure sheets for bottle closures

Aluminum closure sheets for bottle closures

Alloy: 8011, 3105
Status: O, H12, H14, H16
Thickness: 0.18-0.3mm
Standard thickness: 0.18mm, 0.20mm
Width: 50mm-1200mm
Standard width: 813mm, 845mm, 833.8mm, 835mm
Length:400-1000mm
Standard length: 655, 706
Surface: Mill finish, color coated, chromated, varnished
Earing: Typical value: < 2 per cent for >=0.18 mm thickness

Aluminum alloy sheets for beverage cans

Aluminum Alloy Sheets for Beverage Containers

alloy: 3104
Temper: O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H32, H34, H36, H38
Thickness: 0.2-4.5mm
Width: 100-2600mm
Length: 500-16000mm

Features:
High flatness
Easy to add, stable performance
Recyclable, green and environmentally friendly

Auto industry

Aluminum sheet is a better substitute in the process of lightweighting automobiles, and different parts of automobiles have different performance requirements for aluminum sheets.

Features:

  • Significant weight reduction and energy saving effect
  • preservative
  • Improve comfort and safety
  • Easy to recycle, environmentally friendly

Aluminum sheet for automobile body

Aluminum sheet for automobile body

Applied Parts

Alloy

Thickness(mm)

Width(mm)

car door

5182 aluminum sheet and plate

0.15-600

20-2600

engine cover
Car fenders, fenders
car lifter

car roof

5083 aluminum sheet and plate

5754 aluminum sheet and plate

Aluminum plate for automobile chassis

Applied Parts
Alloy

Thickness(mm)

Width(mm)

car bottom guard

5083 aluminum sheet and plate

0.15-600

20-2600

5754 aluminum sheet and plate

Car wheels, truck wheels

6061 aluminum sheet and plate

0.30-600

150-2600

New energy vehicle battery bottom plate

Aluminum plate for power system

Applied Parts

Alloy

Thickness(mm)

Width(mm)

Fuel tank aluminum plate

5083 aluminum sheet and plate

0.15-600

150-2600

5052 aluminum sheet and plate coil

gas tank

5083 aluminum sheet and plate and coil

5052 aluminum sheet and plate and coil

Power battery shell material

3003 aluminum sheet plate and coil

0.20-4.5mm

20-2600

Aluminum foil for battery cells

1235 aluminum foil

0.014/0.015/0.016

280-1200

1060 aluminum foil

1070 aluminum foil

Marine Engineering

Aiboer's marine grade aluminum sheets and plates include 5083 aluminum sheets and plates, 5086 aluminum sheets and plates, 5052 aluminum sheets and plates and other products, which are mainly used in decks, engine pedestals, ship sides, and bottom panels of yachts, grain carriers, fishing boats, work boats, and sand carriers.

aluminum marine grade plate

Applied Parts

Marine grade aluminum plate
side, bottom shell plate

5083、5086、5456、5050

keel

5083

boat ribs

5083

ribs, clapboards

5083、6061

Engine pedestal

5083

deck

5052、5083、5086、5454

Wheelhouse

5083、6N01、5052

ship bulwark

5083

ship's chimney

5083、5052

Roof and side panels of marine vessel containers

3003、3004、5052

porthole

5052、5083、6063、AC7A

gangway

5052、5083、6063、6060

mast

5052、5083、6063、6060

Materials of Construction for Ship Containers

6063、6061、7003

Thermal management

Aluminum brazing sheet is mainly used to manufacture components of motor vehicles’ heat exchange system.

Aluminum Brazing Sheets

Cladding structure of brazed sheet

Brazing layer materials: Al-Si(4000)
Sacrificial anode material: AL-Zn-Cr(7072), etc.
Core material: Al-Mn(3xxx)

Brazed Aluminum sheet in Automobile Heat Exchanger

Alloy:4343/3003/4343、4343/3003/7072、4045/3003/4045、4104/3003/4104、4004/3003/4004

Engine radiator

Alloy: 4343/3003, 4343/3003/7072 Thickness: 1.2~3.0mm Clad Ratio(%):5~10 Tolerance(mm): ±0.03

Oil cooler

Alloy:3003 O (inner fin), 6951(inner fin), 3003 H14(external fin)

Thickness(mm): 0.2~0.3

Clad Ratio(%):none

Tolerance(mm): ±0.05

Air conditioning condenser and evaporator

Alloy:3003 H14 Thickness(mm): 0.08~0.12 Tolerance(mm):±0.005 Clad Ratio(%):None

Heater

Alloy

Temper

Thickness

(mm)

Tolerance

(mm)

Clad Ratio

(%)

3003

O

0.2~0.3

±0.01

none

3003

H16

0.5~0.7

±0.02

none

4047

H18

0.05~0.1

±0.005

none

Intercooler

Alloy

Temper

Thickness

(mm)

Tolerance

(mm)

Clad Ratio

(%)

4343/3003/4343

H14

0.1~0.12

±0.005

8~12

4045/3003/4045

H14

0.1~0.12

±0.005

8~12

Battery material and battery cooler

Alloy

Temper

Thickness

(mm)

Tolerance

(mm)

Clad Ratio

(%)

4104/3003/4104

none

0.1~6

none

10

4104/6063/4104

none

0.1~6

none

10

3003

none

0.1~6

none

0

Aviation industry

Aircraft grade plate alloy

2024 aircraft grade aluminum plate
Status: O, T3, T361, T4, T72, T81, T861
Uses: aircraft structure (skin, frame, rib beam, bulkhead, etc.)

2124 aircraft grade aluminum plate
Temper: T351, T851
Uses: aircraft structural parts, wings, fuselage, gun beams, fuselage skins, central wing skins, air intakes, skins and fairings, etc.

2324 T39 aircraft grade aluminum plate
Uses: aircraft structural parts

2524 T3 aircraft grade aluminum plate
Uses: aircraft skin

2219 aircraft grade aluminum plate
Temper: T31, T37, T87, T851, T3511
Uses: aircraft skin and structural parts

7150 T7751, 7055 T7751 aluminum alloy pre-stretched thick plate
Uses: Upper wall panel of upper wing.

7075 T7651 aircraft aluminum plate
Uses: aircraft frame, integral panel, landing gear, skin, etc.

7055 T77 T7651 super hard aircraft aluminum plate
Uses: Wing upper skin, horizontal stabilizer, keel frame, seat guide rail and cargo guide rail, etc.

7050 Aircraft aluminum alloy plate
Temper: T7651, T7451, T73511, T76511, T7452
Uses: Aircraft fuselage frame, wing skin, bulkhead, stringer, rib, rib, bracket, landing gear bracket, seat guide rail.

7150 Aircraft aluminum plate
Temper: T651, T7751, T6511, T77511, T77
Uses: aircraft upper wing structure, fuselage plate girder flange, upper outer plate main wing stringer, fuselage reinforcement.

7175 Aircraft grade aluminum plate
Temper: T74, T7452, T76511
Application: Aircraft outer spar, main landing gear, vertical tail joint.

7475 Aircraft grade aluminum plate
Temper: T61, T761, T651, T7651, T7351
Uses: Fuselage, wings, skins, center wing structures, spars, bulkheads, landing gear, doors.

Specifications for aircraft grade plate

Thickness: 0.3mm-200mm
Width: 1000mm-3800mm
Length: 2000mm-20000mm

Production implementation standards

GB/T3880, GJB1541, GBn167, GJB2053, GJB2662, ASTMB209, ASME SB-209, EN 485, etc., or produce according to customer requirements.

Commercial vehicle

Aluminum plate for tanker

Aluminum tank plates for tanks

Alloy: 5454 6082 6005A Temper: O, H32,T5,T6, Surface: Mill finish, bright mirror finish Thickness: 4-8mm Width: >2000mm Length: 6000mm

Aluminum plate for truck trailer body

Aluminum plate for truck trailer body

Alloy: 6061 6082 6063 6005A 7005 Temper: T5, T6

Aluminum plate for truck trailer body roof

Alloy: 3003 3105 Temper: H22

Thickness: 0.5-1.0mm Surface: mill finish, white wash Width: above 1500mm, maximum 2650mm

Aluminum plate for refrigerated truck body

Alloy: 6061 6082 6063 6005A 7005 Temper: T5, T6 Thickness: 0.5-1.0mm Surface: mill finish, white wash Width: above 1500mm, maximum 2650mm

Aluminum plate for tipping bodies

Alloy: 5A05 5083 5454 5754 Temper: H32, H34, O Surface: mill finish, mirror glossy finish Side wall : thickness: 5-6mm Floor aluminum plate: thickness: 5-8mm

Thermal transfer and printing

PS CTP aluminum Substrate plate

Alloy: 1060, 1050, 1050A, 1100 Temper: H18 Thickness (mm): 0.1-0.5mm Standard thickness:0.3mm、0.24mm、0.1mm Maximum width: 1350mm

Application: positive PS plate, thermal CTP plate, photosensitive CTP plate, UV-CTP plate and other offset printing plates

Sublimation aluminum sheet / blanks

Alloy: 1050 1060 1100 3003 Painting: polyester Thickness: 0.22-1.5mm (0.22mm 0.4mm 0.45mm 0.5mm. 0.6mm 1.0mm etc.) Size: 600*300mm. 600*400mm 600*450mm610x305mm 1200*600mm etc Width: 20-2000mm Length: max 6000mm Color: mirror gold mirror silver brush gold brushed silver pear silver pear gold satin silver satin gold white champagne matt champagne metallic champagne brushed. Protection film: PE film

Aluminum cast tool and jig plate

Alloy: 5083, 6061, 6082, 7075 Thickness : 5mm-100mm

Standard sizes:

Thickness

Max. Width

Max. Length

>=5mm

1520mm

3020mm

>=10mm

1570mm

3670mm

>=15mm

1860mm

4000mm


aluminum cast tooling plate

Precision ground aluminum plate

Alloy: 5083, 6061, 6082, 7075 Thickness : 5mm-100mm

Standard sizes:

Thickness

Max. Width

Max. Length

>=5mm

1520mm

3020mm

>=10mm

1570mm

3670mm

>=15mm

1860mm

4000mm

Aluminum plate for sale

Aiboer is a professional aluminum sheet manufacturer and supplier, offering various specifications of aluminum sheet. Our aluminum plate inventory is about 1, 000 tons, and we also provide aluminum plate cutting services, which can cut out the aluminum plate size required by customers.
Aluminum sheet stock specifications:

600mm*600mm
600mm*1200mm
915mm*915mm(36’’ x 36’’)
1000mm x 2000mm (39.37" x 78.74")
1220mm x 2440mm (48" x 96")
1250mm x 2500mm (49.21" x 98.43")
1500mm x 3000mm (59.06" x 118.11")
2000mm x 4000mm (78.74" x 157.48")
2000mm x 6000mm (78.74" x 236.22")

The thickness ranges from 0.2mm to 200mm, and there are some common thicknesses such as 1/4 inch, 1/8 inch (0.125).

Packaging and Shipping

Standard seaworthy export packaging: covered with kraft paper and plastic film, then packed in wooden pallets

Accreditations

  • OHSAS 18001
  • ISO14001
  • ISO9001
  • NADCAP HT
  • NADCAP NDT
  • IATP16949

Why choose us

Aiboer Technology - trusted aluminum sheet and plate manufacturer and supplier in China

Large-scale production: advanced production equipment and production lines, 6 cold rolling lines, 2 hot rolling lines, 2 foil rolling lines, 2 continuous casting and rolling lines, and other extrusion, slitting, and testing equipment are readily available .
Customization: We can customize aluminum products according to customer needs, including customized dimensions, customized alloy elements, customized production processes, etc., and sign a confidentiality agreement.
Abundant inventory: 3, 000 tons of aluminum sheets, aluminum coils, and aluminum foils are always in stock, and we can handle even small orders.
Fast delivery: Efficient logistics and warehousing system, fast delivery of customer orders.
Rich experience: started in 2007, with more than 30 senior engineers and 12 testing engineers.

Let's get connected

For all inquiries, please fill in the form (* are required) to send us a brief message, and we will get back to you as soon as possible 7*24 Hour

Still Have Questions?

Contact us to get quotation information
Contact us for the details of the product
Contact us to get free samples

Office Address

Room 410, Building 1, Leding Plaza, Zhongyuan District, Zhengzhou, Henan,China
Jenny Han
TEL/WhatsAPP/Wechat: + 86 13803818945
Email: jenny@aiboeral.com
Vicky Ma
TEL/WhatsAPP/Wechat: + 86 15981972778
Email: vicky@aiboeral.com

Factory Address

10 Meters West Of North Community Road, Fumin Avenue, Liyuan Township, Puyang, Henan, China
+ 86 15803711880
Gavin Ma

Leave Us A Message
